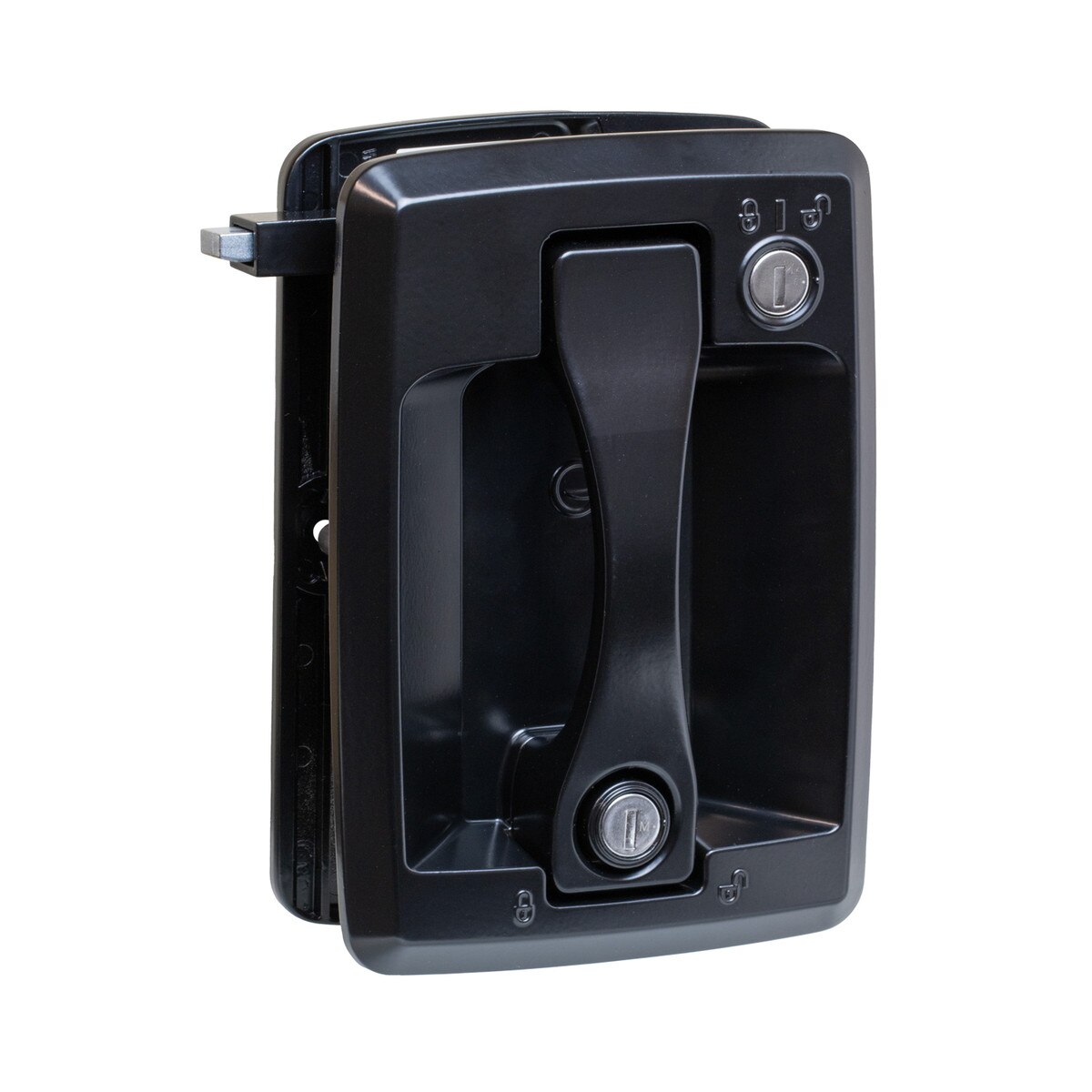

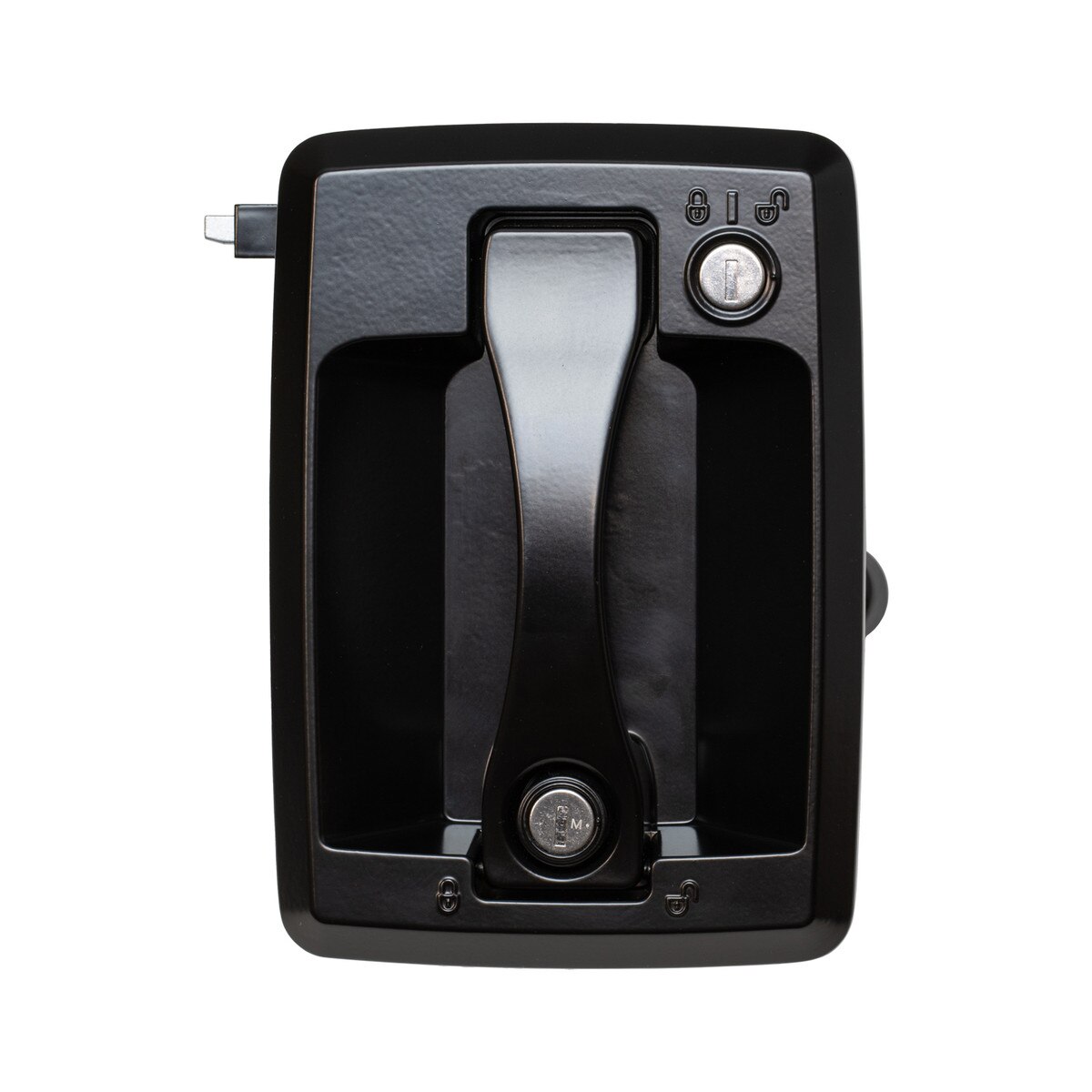

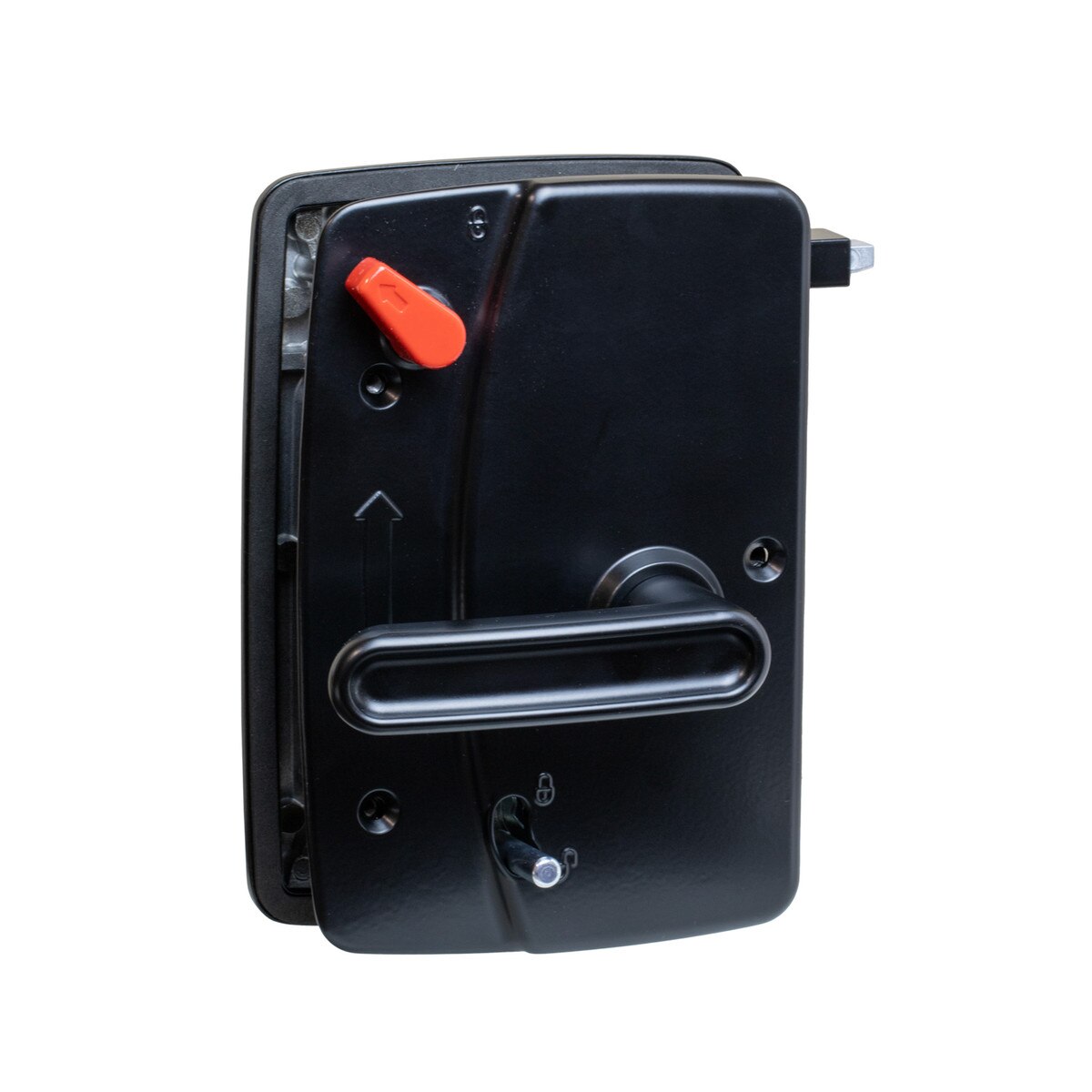

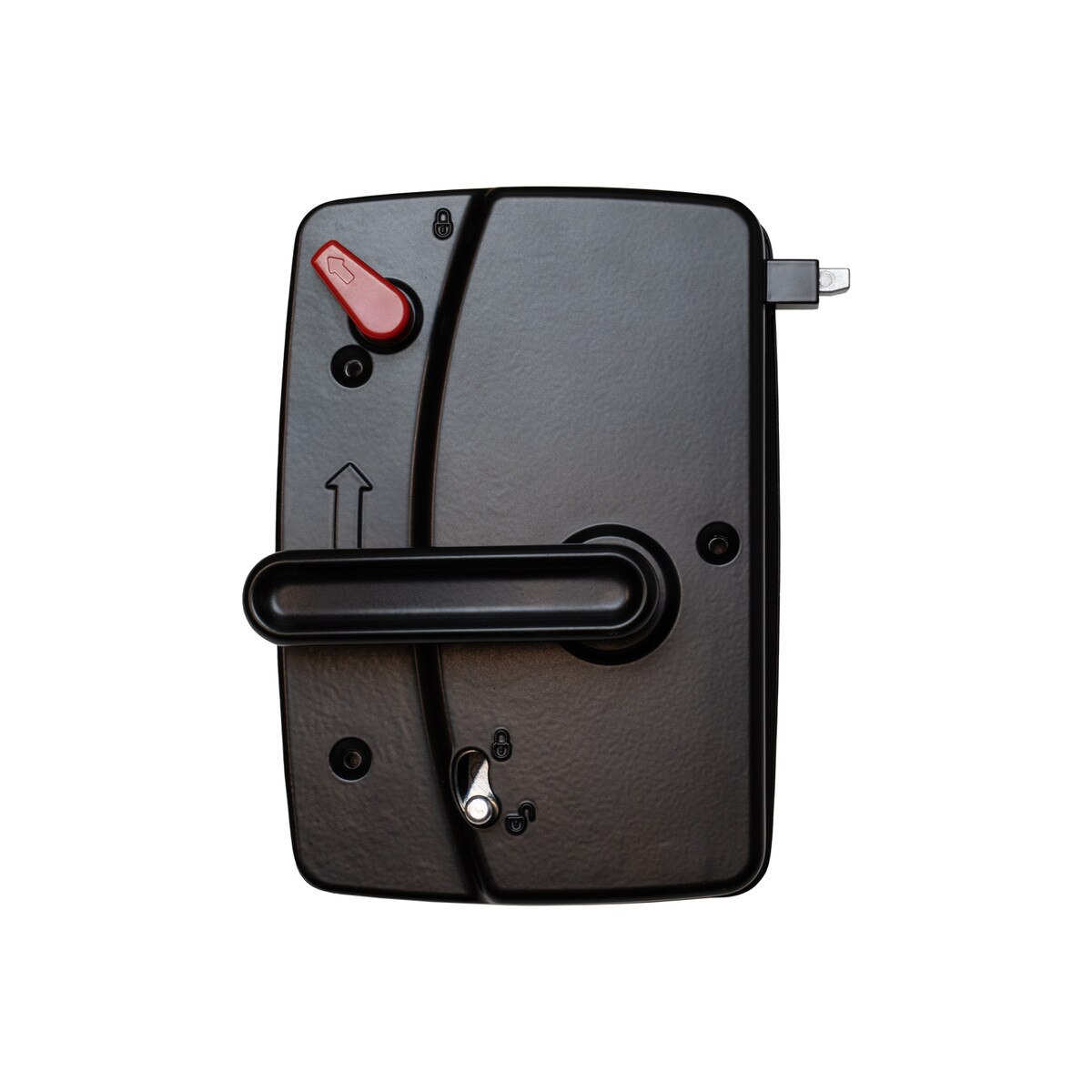

Global Link Motor Coach Entry Door Rotary Lock, Direct Link, Black

The Motor Coach Rotary Style Lock with Direct Link, engineered for enhanced security and durability. FMVSS approved and SAE J839 compliant, this lock features a direct rotary module with a standard deadbolt and is finished with super durable standard black powder coat finish.

Measuring at an outside diameter of 7.80" tall x 5.52" wide x 1.5" depth, this lock requires a door cut-out of 6.90" tall x 4.60" wide for installation. The lock can be keyed to any Global G300 series key code, offering versatility and compatibility with various key systems.

Please note:

• Installation must be carried out by a certified technician.
• The rotary module, strike pin, and door edge plate are not included with this lock.
• For connection to the rotary module, a adjusting rod is not required.
• #10-32 X 1.O" Oval Head Screws used for inside plate attachment, Included in Retail Kit.
