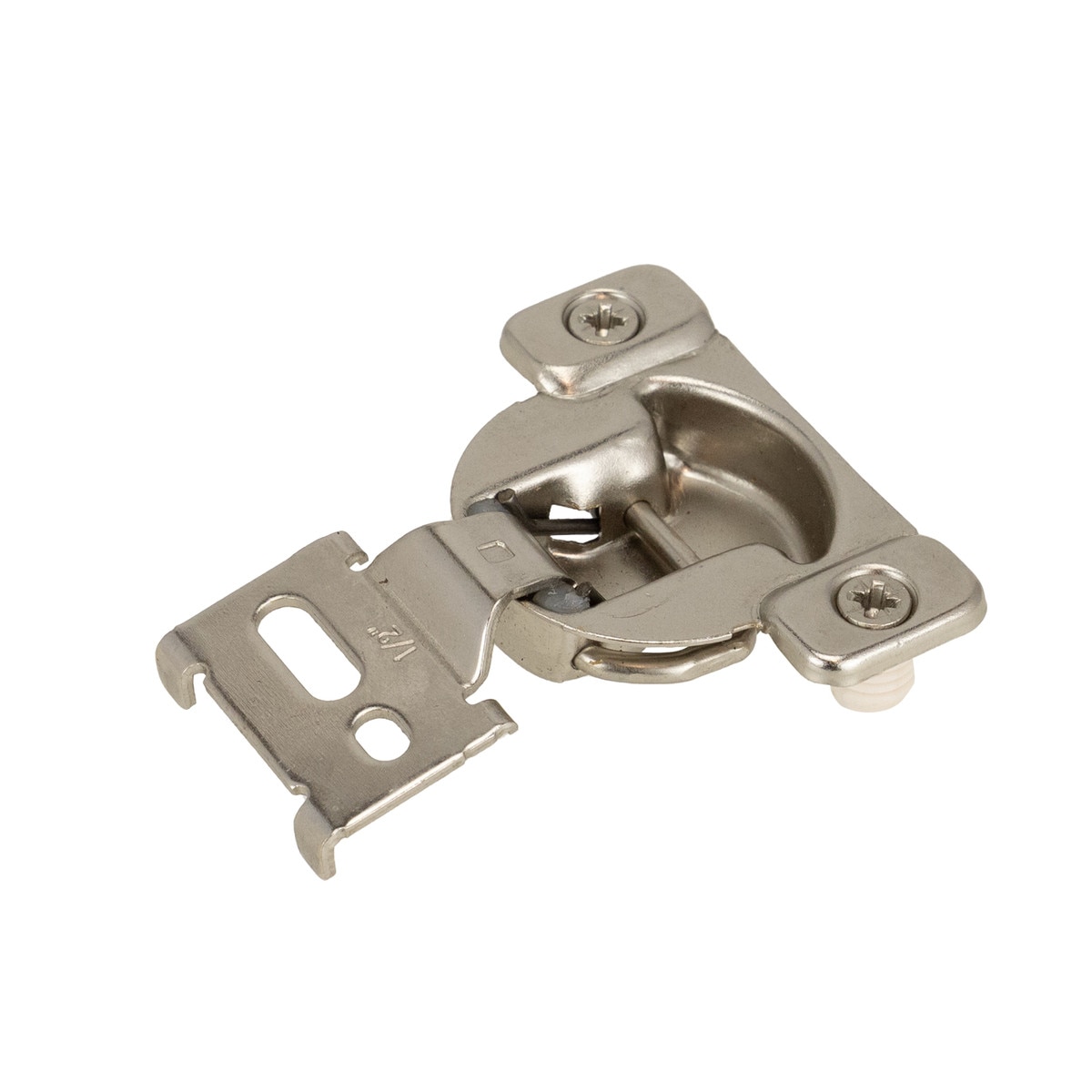

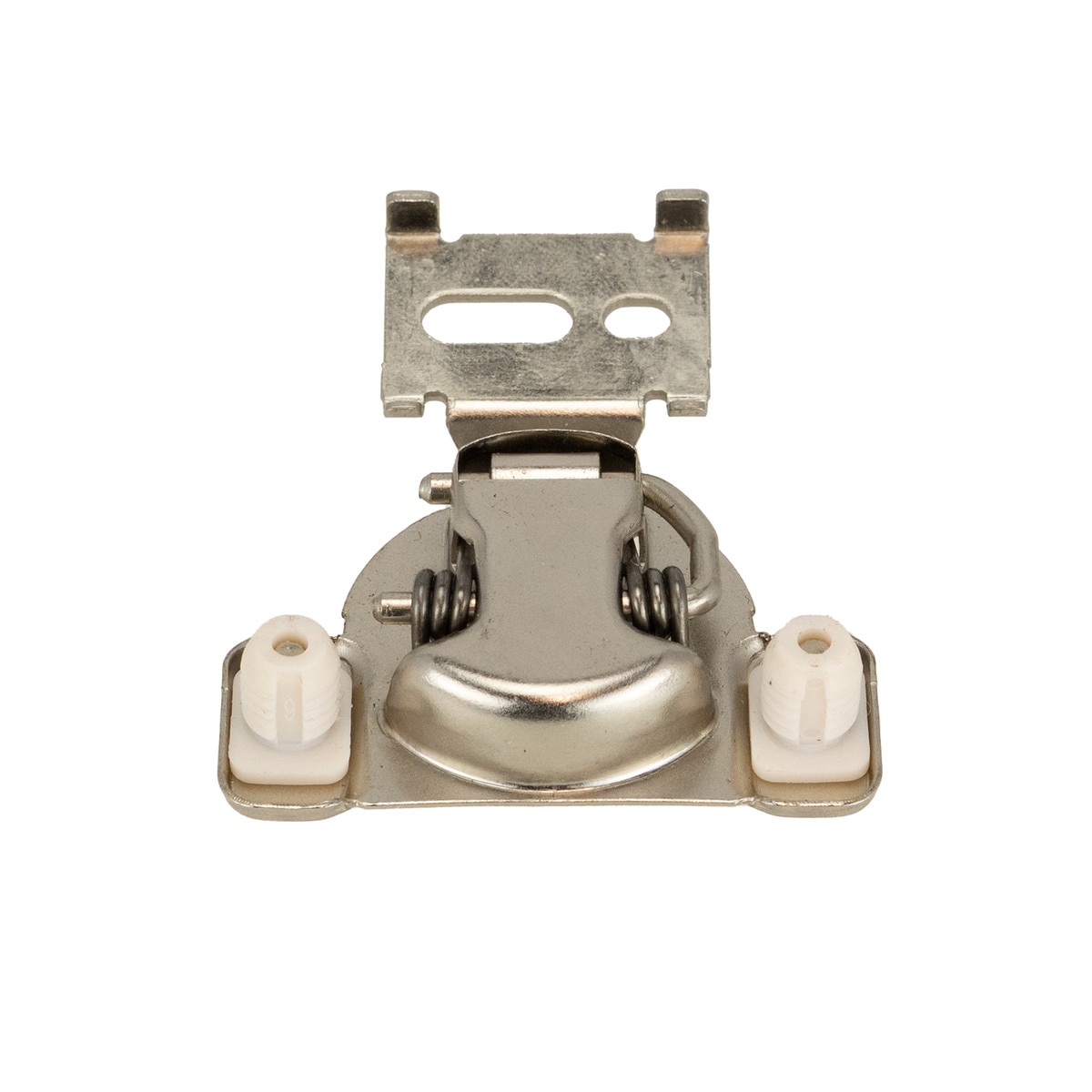

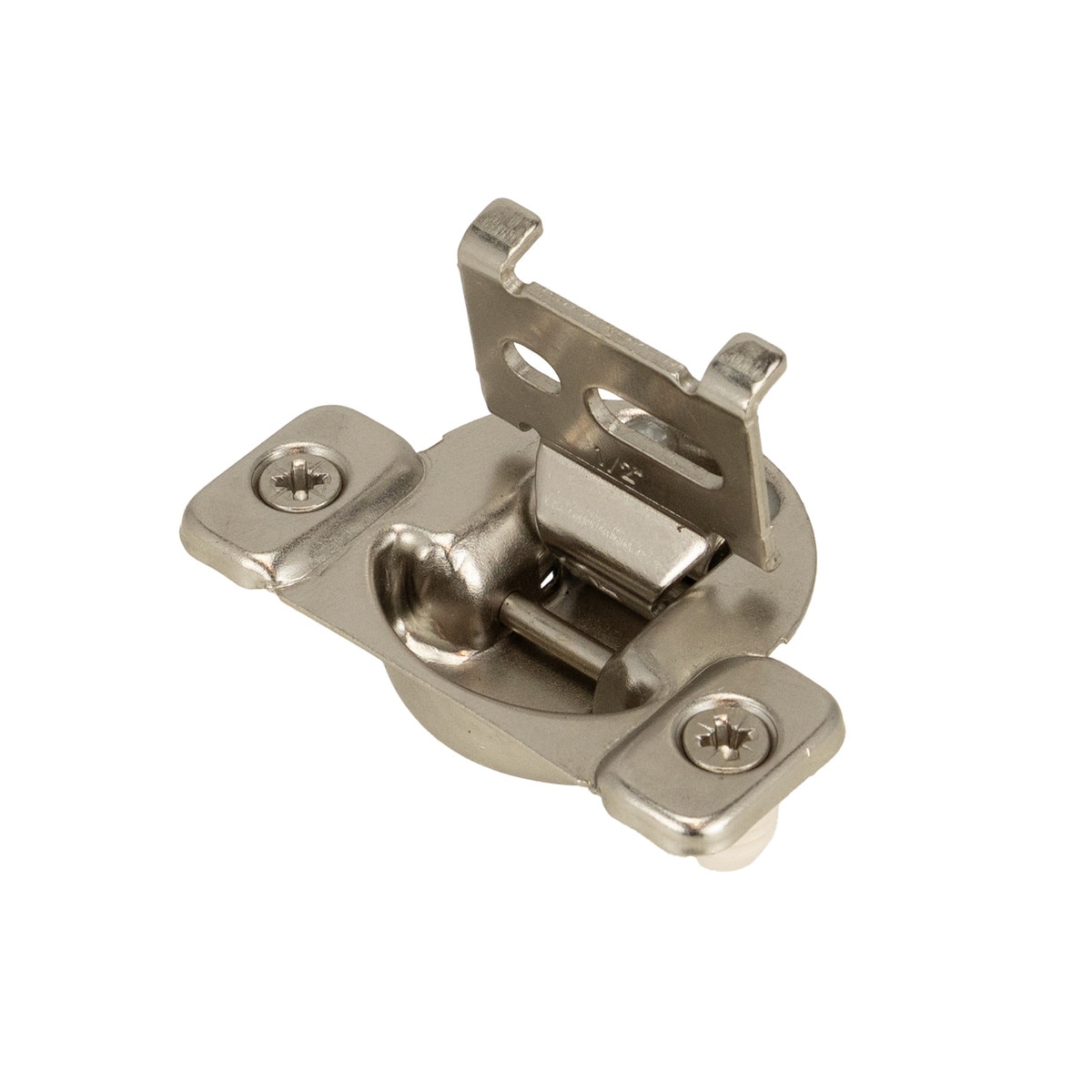

Global Link Concealed Cabinet Hinge, 2- Way Adjustment, Nickel Plated

The Global Link Concealed Cabinet Hinge offers reliable performance and a clean, modern look for RV, trailer, mobile home, and residential cabinetry. Designed with 8mm dowels for secure mounting, this hinge provides smooth, consistent operation while remaining hidden from view for a streamlined appearance.

Featuring a 110-degree opening angle and a 1/2" overlay with alignment tabs, this hinge accommodates a wide range of cabinet door configurations. The 35mm cup makes it compatible with standard face-frame cabinets, and the 2-way adjustment allows for simple fine-tuning of door alignment.

Finished in nickel plating, it provides excellent durability and corrosion resistance.

Specifications:

• Brand: Global Link

• Type: Concealed cabinet hinge

• Cup Size: 35mm

• Mounting: 8mm dowels for secure installation

• Overlay: 1/2" with tabs

• Opening Angle: 110°

• Adjustment: 2-way adjustment

• Finish: Nickel plated
